Bronze Hotline Clamps
Connection Type Run
Run Dia.
Run

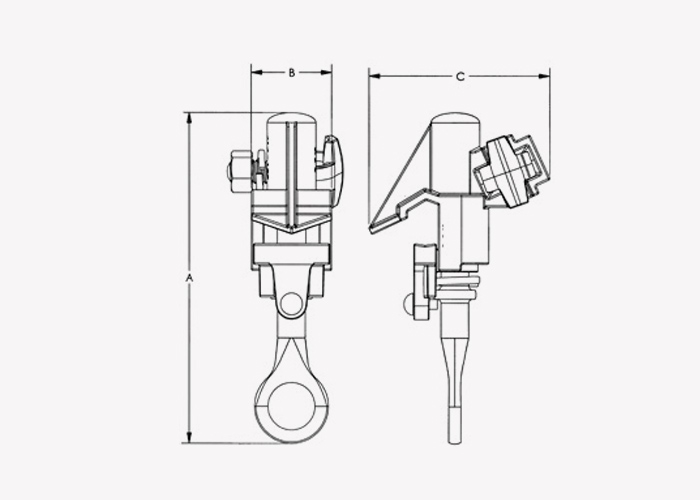

A (in)
B (in)
C (in)
CU
0.128-0.414
#8 sol-2/0 str
4.5
1.25
2.75
CU
0.162-0.745
#6 sol-400 MCM
6.5
1.75
2.5
CU
0.162-0.745
#6 sol-400 MCM
6.5
1.75
2.5

Description

Bronze hot line clamps, also known as hot line taps or Bronze hot line connectors, are electrical connectors designed to provide a safe and secure attachment of electrical conductors to energized power lines or bus bars. These clamps are typically used by utility workers and electricians to make temporary electrical connections while working on live electrical systems, such as high-voltage transmission lines or distribution networks. They are used with the help of hot sticks.

Key features of Bronze hot line clamps include:

  • Bronze Construction: These clamps are made of Bronze, a metal known for its excellent electrical conductivity and resistance to corrosion. The bronze material ensures that the clamps can safely carry electrical currents and withstand harsh outdoor conditions.

  • Insulated Handles: Hotline clamps usually have insulated handles or grips that provide protection to the user from electric shock while making connections to energized lines.

  • Spring-Loaded Mechanism: The clamps often feature a spring-loaded design, allowing them to be easily opened and closed with one hand during installation.

  • Toothed Jaws: The jaws of the clamps are toothed or serrated to ensure a secure grip on the conductor or bus bar.

  • Safety Features: Bronze hot line clamps may have additional safety features such as “fail-safe” designs or locking mechanisms to prevent accidental detachment from the conductor.

Material:

  • The Body can be made from various grades of Bronze such as C836,C844,C956 etc.

  • The Bronze hotline clamp is always made from a strong, high torque grade of Bronze such as C95500.

  • The fasteners are from all from Stainless Steel 304 including the key/eyebolt.
